Processes that inhibit pH changes in an aquifer are called pH buffering processes. These processes are important because pH is often a key control on the chemical and microbiological processes responsible for contaminant remediation. All aquifers have some natural buffering capacity, but in many cases the pH buffering capacity must be augmented to achieve optimum remediation performance. This is particularly true for remedial processes that generate acid such as microbial degradation of chlorinated solvents. Considerations in choosing amendments for enhancing aquifer-buffering capacity are achieving the correct dose, the longevity of it in the aquifer, and any collateral effects.

Related Article(s):

CONTRIBUTOR(S): Dr. Miles Denham


Key Resource(s):

Introduction

Buffering of pH – the resistance to pH change – in groundwater systems can be an important control on contaminant attenuation or degradation processes. This happens when aquifer buffering capacity is sufficient to counteract pH changes resulting from contaminants entering the aquifer and/or in situ remediation processes. Buffering capacity can occur naturally or be engineered by addition of amendments to the groundwater system.

Natural Buffering Capacity

In natural aqueous systems, pH buffers are predominantly weak acid anions that easily bind and release hydrogen ions. The most common are the weak acid anions produced by dissolved carbon dioxide (CO2)[2][3]. When dissolved in water, carbon dioxide combines with water as carbonic acid (H2CO3). Carbonic acid then undergoes a series of reactions, creating a buffer system:

Denham Equation page 1.PNG


These reactions are reversible so that (a) an influx of acid will cause the bicarbonate (HCO3-) and carbonate (CO3-2) ions to protonate, consuming the acid, or (b) an influx of base will cause dissociation (deprotonation) of dissolved carbonic acid (H2CO3) and the bicarbonate ion to consume the base. Maximum resistance to pH change (buffering capacity) occurs when pH equals the dissociation constants of carbonic acid (pH = 6.3 @ 25°C) or bicarbonate ion (pH = 10.3 @ 25°C). Figure 1 illustrates the dissolved carbonate system.

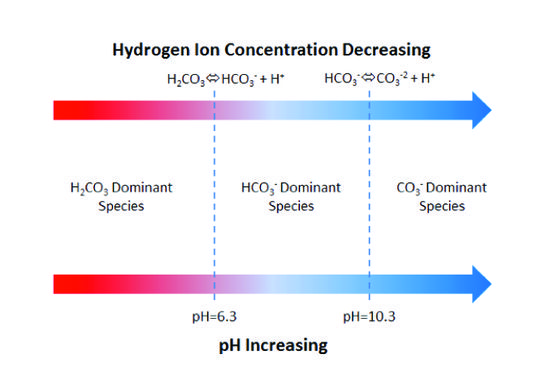

Figure 1. Graphic showing the dissolved carbonate system.

For a system open to a large reservoir of carbon dioxide, the buffering capacity (assuming no soluble minerals are present) is a function of the partial pressure of carbon dioxide in the reservoir. In a closed system, the buffering capacity is a function of the total dissolved carbonate (H2CO3, HCO3-, and CO3-2). The buffering capacity of groundwater is measured with an alkalinity titration[4][5]. Commercial field kits are available for measuring alkalinity. In most aquifers at constant total dissolved carbonate, the bicarbonate ion will dominate alkalinity, with the carbonate ion becoming more prominent as pH exceeds 10. Nevertheless, other ions contribute to alkalinity including hydroxyl, phosphate, silicate, and borate, but only dominate in rare cases. The units of alkalinity are often reported as mg CaCO3/L (milligrams of CaCO3 per liter):

Alkalinity (mg CaCO3/L) = Alkalinity (milliequivalents/L) x 100

Minerals

The buffering capacity of an aquifer is not made up solely of the groundwater alkalinity. Minerals can contribute substantial buffering capacity, particularly in aquifers that contain calcium carbonate (the mineral calcite; CaCO3). When acid enters an aquifer containing calcite, the calcite dissolves releasing carbonate ions. If the pH is <10.3, carbonate ions will combine with hydrogen ions according to the reactions listed above, thereby buffering the pH against the acid influx. Conversely, influx of alkaline water can cause calcite to precipitate, removing carbonate ions from solution. In response, some bicarbonate ions will deprotonate, buffering the pH against the increase. Aquifers in limestones or other rocks rich in calcite have higher buffering capacities and groundwater alkalinities than aquifers containing no calcite.

Other minerals common to aquifers can also act like pH buffers. Silicate minerals such as feldspars and clays will dissolve by consuming acid in acidic conditions. Under high pH conditions, they dissolve by consuming base. These minerals dissolve incongruently and their reactions are not reversible. Therefore, they are not true pH buffers, but they do provide resistance to pH change in groundwater. However, silicate mineral reactions are generally slow compared to carbonate minerals and dissolution of most native silicate minerals will not be sufficient to counteract pH change caused by the influx of an acidic contamination plume or vigorous microbial processes that produce acid.

Mineral Surfaces

Surfaces of clay minerals and similarly-sized oxides in aquifers can also act as pH buffers. The surfaces of these minerals can reversibly bind and release hydrogen ions as pH changes (Fig. 2).

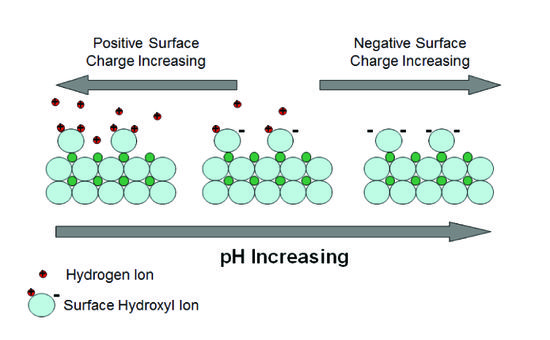

Figure 2. Diagram of mineral surface exchanging hydrogen ions with varying pH[6].

Broken bonds at mineral surfaces leave oxygens that are not fully bonded and act as weak acid anions that adsorb hydrogen ions (and other cations). Influxing acid can be neutralized by adsorbing hydrogen ions on negatively charged surface sites and influxing base can be neutralized by adsorbing to positively charged sites. The zero point of charge is the pH value at which the net surface charge density is zero. The buffering capacity for acid or base depends on how far the pH of the system is above or below the zero point of charge. The point of zero charge is different for different minerals and lists are available from many sources[2].

Total Buffering Capacity

The total aquifer buffering capacity is the sum of the buffering capacity of the groundwater plus that of the aquifer minerals and is determined by acid-base titration. A variety of methods exist for measuring buffering capacity (examples[7][8], or Standard Method 2320[9] can be modified for solids), but the method should be consistent with the end-use of the measurement. The slow kinetics of some pH buffering reactions means that various methods may yield different results depending upon equilibration time. When the end-use is environmental remediation, relatively short equilibration times (several days to two weeks), that don’t capture the buffering capacity of silicate dissolution are most appropriate for common aquifer systems.

Engineered pH Buffering

There are many cases where raising and buffering pH are beneficial to the environmental remediation process. Anoxic limestone drains have been used to raise the pH of acid mine drainage by reacting the acidic metal contaminated water with calcite, promoting precipitation of the contaminant metals. Likewise, groundwater contaminated by metals and radionuclides is often acidic and raising pH to natural values can increase in situ adsorption and precipitation of the contaminants[10]. Raising and buffering pH can also be necessary during remediation of organic compounds.

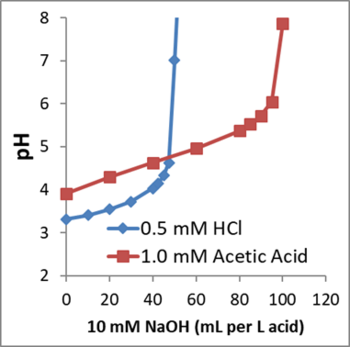

Figure 3. Titration of two acids (0.5 N HCl and 1.0 N acetic acid with 10 N NaOH).

To calculate the amount of base or buffer required to increase aquifer pH, the groundwater acidity should first be measured. Acidity should not be confused with pH. Acidity is the amount of base required to neutralize acids present in a water sample. Since acids can disassociate to different extents, two solutions with the same pH can have different acidities. Figure 3 shows how the pH of solutions containing 0.5 N HCl and 1.0 N acetic acid change as NaOH is added. The initial pH of the acetic acid solution is higher than that of the HCl solution, yet the acetic acid solution has a higher acidity.

Acidity is measured by Standard Method 2310[11] in which a water sample is titrated to a specified end point with a strong base. Traditionally, an end point pH of 3.7 is used for strong acids (methyl orange acidity) and an end point 8.3 is used for weak acids (phenolphthalein or total acidity) such as dissolved CO2.

In some aquifers, the pH is low due to high concentrations of dissolved CO2. Below the water table, the high pressure prevents degassing, however, when a water sample is brought to the surface, the reduced pressure results in CO2 degassing. If this occurs, pH will increase and the measured acidity will not be representative of the "in situ" conditions at depth.

Acid is also produced during remediation of organic solvents during anaerobic dechlorination[1] provides a good discussion of mechanisms) and pH buffering is often required to sustain the process[12][13][14]. In the remediation literature, the most commonly mentioned buffering agents are forms of bicarbonate and carbonate[1][15]. Other reagents used to raise and buffer pH include phosphate[16], magnesium hydroxide[17], and silicate minerals[18].

Bases

Table 1 lists common basic salts used to raise pH and allows a comparison of various physical properties. Bases are injected into the subsurface as solutions or solids to neutralize the acidity of the groundwater and mineral surfaces. Typically, the equivalents of base needed to neutralize the acidity of the system is measured or calculated to determine the amount of base, in terms of alkalinity, to be injected. However, there are other factors to consider when raising aquifer pH. Injection of high-pH solutions in unconsolidated sediments can cause clay minerals to disperse and clog the formation near the well. At pH values significantly >10, undesirable dissolution/reprecipitation of silicate minerals may clog the formation. Likewise, elevated pH values may inhibit desirable microbial growth.

Different base solutions have different pH values at the same alkalinity. For example, sodium bicarbonate (NaHCO3) solution has a pH of 8.3 at an alkalinity of 100 mg CaCO3/L, whereas sodium carbonate (Na2CO3) solution has a pH of 10.3 (Table 1). Hydroxides of sodium, potassium, and calcium all have a pH of 11 at the target alkalinity of 100 mg CaCO3/L. Milk of magnesia (Mg(OH) 2) has a limited solubility and an equilibrium solution will have an alkalinity <100 mg CaCO3/L. Nevertheless, when delivered to the subsurface as a solid it provides a long-lasting source of alkalinity to react with acid produced during processes such as anaerobic dechlorination of solvents. Hence, the choice of bases depends on site conditions and the specific purpose of raising pH in the subsurface.

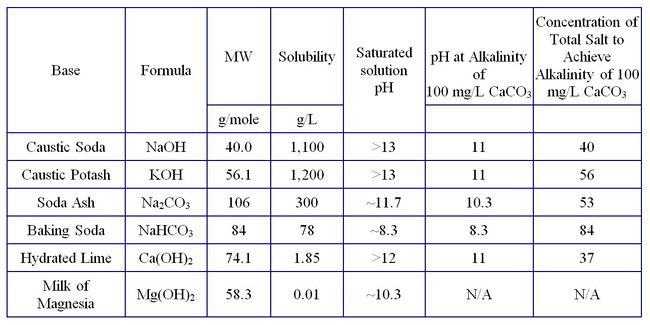

Table 1. Physical properties of common basic salts used to raise pH in groundwater.

Estimating Amendment Dosage

When manipulating and buffering pH during remediation, it is important to know the dosage of amendment required to achieve the desired results. The goal is to keep groundwater pH within the optimal range. Dose amount is based on an estimate of mass of acid produced during the remediation process and the acid buffering capacity of the aquifer solids. BUCHLORAC[1] is a geochemical model that incorporates thermodynamics and kinetics of processes occurring during anaerobic dechlorination of solvents that can be used to estimate possible amendment dosage results.
